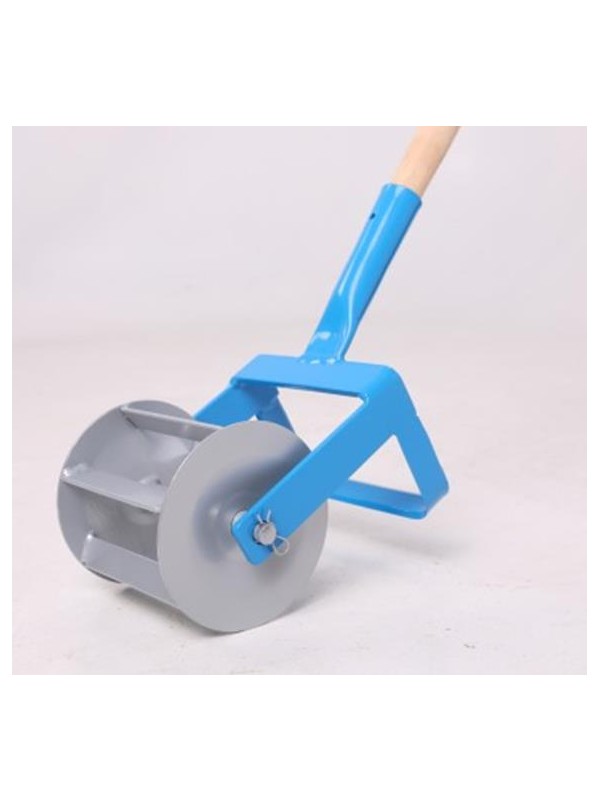

Manual garden cultivator with fixed blade 14

The tool is made of structural steel and manganese steel (cutter)

Colour: powder coating or plastic coating                     Frame colour: pink / green / blue / red / black  Cylinder: silver

Working width 7/9/14/18/23 cm Dimensions of the entire tool: 24 x 7 x 16 / 27 x 9 x 18 / 32 x 14 x 20 / 31 x 18 x 20 / 31 x 23 x 20 cm

Maximum cut depth:  7/8/9/9/9 cm              Tool weight without wooden handle: 0.8 / 1.2 / 1.8 / 2.2 / 2.7 kg

Suitable size of wooden handle: 7                  29 x 2.3 (short hoe handle)

                                                         7/9/14/18  150 x 2.4 cm (rake handle)

                                                         23                130 x 4 cm (shovel handle)

The set does not contain a wooden handle.

 After each use, the tool must be cleaned, dried and stored in a dry place. If you are not planning to use the tool for a longer period of time, coat the tool with suitable oil.

Keep the product out of the reach of children due to sharp parts (manganese blade).

The tool is used for trimming, digging, aerating, and loosening the working surface. If you come across harder objects (root, stone) DO NOT  continue to work by force, otherwise deformation and damage to the tool may occur.

Tool assembly: Insert the wooden handle into the handle mount and fasten it with the supplied wooden screw
